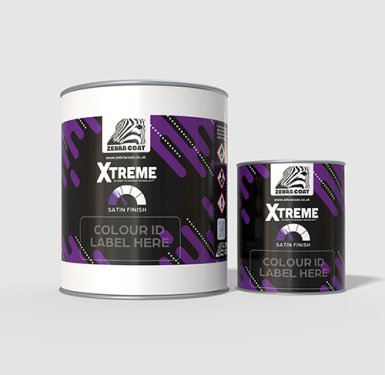

Zebra Coat Extreme 2K UPVC

A 2K Ultra High Solids One Layer Coating System with OH Functional Resins & Direct To
Surface Technology (DTST® ) . Xtreme is a market leading performance coating with high
mechanical, chemical and weather resistance and is C5M rated.
Substrates include : Composite; uPVC; Melamine; Most Plastics & ABS (excluding PP); Glass;
Aluminium; Stainless; Galvanised & Mild Steel.
• Long Term High Weather & UV Resistance
• Exceptional Impact Resistance
• High Solids: 78% By Weight & Low Mixed Voc:310 g/l
• Excellent Coverage : 10.8 m2 /l @ 60 microns Dry Film : 30% Greater than other DTM’s

Mixing Ratio
For Gravity Gun Application By Volume:
• 5 Parts Paint
• 1 Part 2115 Hardener
• Add 40-60% 2033 Thinner
• Optional : 2ml 3110 Accelerator Per Mixed Litre
Apply 1 dust coat, allow 10-15 minutes flash off and then apply one wet coat.
Drying times at 200C
For force drying - allow to flash off for 30 minutes. Bake at 400C for 30 minutes.
Depending on coating thickness, coated items can be packaged and shipped after 24
hours. Please refer to the Technical Data Sheet for full instructions.

For The Following Substrates Mix at 5:1 with 40-60 % Thinner:
• UPVC / Composite / GRP / :- Abrade with a grey hand finishing pad.
• Glass - Ensure clean and dry
• Melamine - Abrade with 320’s
• ABS - Ensure clean & dry :- abrade with a grey hand finishing pad.

Spray Gun Settings
1.3 Gravity Gun
• 2 Bar
• 1 Dust Coat
• Allow 10-15 Minute Flash Off
• Apply One Wet Coat

Air Assisted & Airless
• 11 to 13 Tip
• 1 Dust Coat
• Allow 10-15 Minute Flash Off
• Apply One Wet Coat

SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
1 / 31
SECTION 1: Identification of the substance/mixture and of the company/undertaking
1.1 Product identifier
Product code : 44082806
Trade name : Zebracoat Xtreme Satin
Unique Formula Identifier
(UFI)
: KSMT-W0WJ-A00K-7W6F
1.2 Relevant identified uses of the substance or mixture and uses advised against
Use of the Substance/Mixture
: Manufacture of paints, varnishes and similar coatings, printing ink and mastics, Use at industrial sites
PROC7 Industrial spraying, Roller application or brushing
Industrial top coats for metal protection
Recommended restrictions
on use
: Reserved for industrial and professional use.
1.3 Details of the supplier of the safety data sheet
Company : Helios TBLUS d.o.o.
Količevo 65
1230 Domžale
Slovenia
Telephone Company : 386 (1) 722 4383
Telefax Company : 386 (1) 722 4310
Responsible/issuing person : 386 (1) 722 4383
productsafety@helios.si
1.4 Emergency telephone number
Call 999 (or 112) for emergency medical attention
professionals only: National Poison Information Service (NPIS) 24h national number 0844 892
0111
consumer: National Health Service (NHS) 24h national number, England & Scotland 111
SECTION 2: Hazards identification
2.1 Classification of the substance or mixture
Classification (REGULATION (EC) No 1272/2008)
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
2 / 31
Flammable liquids, Category 3 H226: Flammable liquid and vapour.
Skin sensitisation, Category 1 H317: May cause an allergic skin reaction.
Specific target organ toxicity - single exposure, Category 3, Central nervous
system
H336: May cause drowsiness or dizziness.
Long-term (chronic) aquatic hazard, Category 2
H411: Toxic to aquatic life with long lasting effects.
2.2 Label elements
Labelling (REGULATION (EC) No 1272/2008)
Hazard pictograms :
Signal word : Warning
Hazard statements : H226 Flammable liquid and vapour.
H317 May cause an allergic skin reaction.
H336 May cause drowsiness or dizziness.
H411 Toxic to aquatic life with long lasting effects.
Precautionary statements : Prevention:
P210 Keep away from heat, hot surfaces, sparks, open
flames and other ignition sources. No smoking.
P261 Avoid breathing dust/ fume/ gas/ mist/ vapours/ spray.
P273 Avoid release to the environment.
P280 Wear protective gloves/ protective clothing/ eye protection/ face protection/ hearing protection.
Response:
P370 + P378 In case of fire: Use dry sand, dry chemical or
alcohol-resistant foam to extinguish.
P391 Collect spillage.
Hazardous components which must be listed on the label:
n-butyl acetate
Phthalic anhydride
mixture of sterically composed sebacates
pentaerythritol tetrakis(3-mercaptopropionate)
maleic anhydride
2.3 Other hazards
This substance/mixture contains no components considered to be either persistent, bioaccumulative and toxic (PBT), or very persistent and very bioaccumulative (vPvB) at levels of 0.1% or
higher.
Ecological information: The substance/mixture does not contain components considered to have
endocrine disrupting properties according to REACH Article 57(f) or Commission Delegated regulation (EU) 2017/2100 or Commission Regulation (EU) 2018/605 at levels of 0.1% or higher.
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
3 / 31
Toxicological information: The substance/mixture does not contain components considered to
have endocrine disrupting properties according to REACH Article 57(f) or Commission Delegated
regulation (EU) 2017/2100 or Commission Regulation (EU) 2018/605 at levels of 0.1% or higher.
SECTION 3: Composition/information on ingredients
3.2 Mixtures
Chemical nature : Industrial paint
Solvent-borne coatings
Components
Chemical name CAS-No.
EC-No.
Index-No.
Registration number
Classification Concentration
(% w/w)
n-butyl acetate 123-86-4
204-658-1
607-025-00-1
01-2119485493-29
Flam. Liq. 3; H226
STOT SE 3; H336
(Central nervous
system)
EUH066
>= 10 - < 20
heptan-2-one 110-43-0
203-767-1
606-024-00-3
01-2119902391-49
Flam. Liq. 3; H226
Acute Tox. 4; H302
Acute Tox. 4; H332
STOT SE 3; H336
(Central nervous
system)
>= 1 - < 10
Hydrocarbons, C9 aromatics -
918-668-5
01-2119455851-35
Flam. Liq. 3; H226
STOT SE 3; H336
(Central nervous
system)
STOT SE 3; H335
(Respiratory system)
Asp. Tox. 1; H304
Aquatic Chronic 2;
H411
>= 2,5 - < 10
trizinc bis(orthophosphate) 7779-90-0
231-944-3
030-011-00-6
01-2119485044-40
Aquatic Acute 1;
H400
Aquatic Chronic 1;
H410
>= 2,5 - < 10
2-methoxy-1-methylethyl acetate 108-65-6
203-603-9
607-195-00-7
01-2119475791-29
Flam. Liq. 3; H226
STOT SE 3; H336
(Central nervous
system)
>= 1 - < 10
adipic acid 124-04-9
204-673-3
607-144-00-9
01-2119457561-38
Eye Irrit. 2; H319 >= 1 - < 10
propylidynetrimethanol 77-99-6
201-074-9
01-2119486799-10
Repr. 2; H361fd >= 0,1 - < 1
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
4 / 31
Phthalic anhydride 85-44-9
201-607-5
607-009-00-4
01-2119457017-41
Acute Tox. 4; H302
Skin Irrit. 2; H315
Eye Dam. 1; H318
Resp. Sens. 1; H334
Skin Sens. 1; H317
STOT SE 3; H335
(Respiratory system)
>= 0,1 - < 1
mixture of sterically composed
sebacates
1065336-91-5
915-687-0
01-2119491304-40
Skin Sens. 1; H317
Aquatic Acute 1;
H400
Aquatic Chronic 1;
H410
>= 0,25 - < 1
Pentaerythritol tetrakis(3-
mercaptopropionate)
7575-23-7
231-472-8
01-2119486981-23-
0000
Acute Tox. 4; H302
Skin Sens. 1A; H317
Aquatic Acute 1;
H400
Aquatic Chronic 1;
H410
>= 0,25 - < 1
maleic anhydride 108-31-6
203-571-6
607-096-00-9
01-2119472428-31
Acute Tox. 4; H302
Skin Corr. 1B; H314
Eye Dam. 1; H318
Resp. Sens. 1; H334
Skin Sens. 1A; H317
STOT RE 1; H372
(Inhalation, Respiratory system)
EUH071
specific concentration
limit
Skin Sens. 1A; H317
>= 0,001 %
< 0,001
Substances with a workplace exposure limit :
Talc 14807-96-6
238-877-9
01-2120140278-58
>= 1 - < 10
SECTION 4: First aid measures
4.1 Description of first aid measures
General advice : Move out of dangerous area.
Show this safety data sheet to the doctor in attendance.
Do not leave the victim unattended.
If inhaled : Call a physician or poison control centre immediately.
If unconscious, place in recovery position and seek medical
advice.
In case of skin contact : If on skin, rinse well with water.
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
5 / 31
If on clothes, remove clothes.
In case of eye contact : Flush eyes with water as a precaution.
Remove contact lenses.
Protect unharmed eye.
Keep eye wide open while rinsing.
If eye irritation persists, consult a specialist.
If swallowed : Keep respiratory tract clear.
Do not give milk or alcoholic beverages.
Never give anything by mouth to an unconscious person.
If symptoms persist, call a physician.
Take victim immediately to hospital.
4.2 Most important symptoms and effects, both acute and delayed
Risks : May cause an allergic skin reaction.
May cause drowsiness or dizziness.
4.3 Indication of any immediate medical attention and special treatment needed
Treatment : Treat symptomatically.
SECTION 5: Firefighting measures
5.1 Extinguishing media
Suitable extinguishing media : Alcohol-resistant foam
Carbon dioxide (CO2)
Dry chemical
Unsuitable extinguishing
media
: High volume water jet
5.2 Special hazards arising from the substance or mixture
Specific hazards during firefighting
: Do not allow run-off from fire fighting to enter drains or water
courses.
Hazardous combustion products
: No hazardous combustion products are known.
5.3 Advice for firefighters
Special protective equipment
for firefighters
: In the event of fire, wear self-contained breathing apparatus.
Further information : Collect contaminated fire extinguishing water separately. This
must not be discharged into drains.
Fire residues and contaminated fire extinguishing water must
be disposed of in accordance with local regulations.
For safety reasons in case of fire, cans should be stored separately in closed containments.
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
6 / 31
Use a water spray to cool fully closed containers.
SECTION 6: Accidental release measures
6.1 Personal precautions, protective equipment and emergency procedures
Personal precautions : Use personal protective equipment.
Ensure adequate ventilation.
Remove all sources of ignition.
Evacuate personnel to safe areas.
Beware of vapours accumulating to form explosive concentrations. Vapours can accumulate in low areas.
6.2 Environmental precautions
Environmental precautions : Prevent product from entering drains.
Prevent further leakage or spillage if safe to do so.
If the product contaminates rivers and lakes or drains inform
respective authorities.
6.3 Methods and material for containment and cleaning up
Methods for cleaning up : Contain spillage, and then collect with non-combustible absorbent material, (e.g. sand, earth, diatomaceous earth, vermiculite) and place in container for disposal according to local
/ national regulations (see section 13).
6.4 Reference to other sections
See sections: 7, 8, 11, 12 and 13.
SECTION 7: Handling and storage
7.1 Precautions for safe handling
Advice on safe handling : Avoid formation of aerosol.
Do not breathe vapours/dust.
Avoid exposure - obtain special instructions before use.
Avoid contact with skin and eyes.
For personal protection see section 8.
Smoking, eating and drinking should be prohibited in the application area.
Take precautionary measures against static discharges.
Provide sufficient air exchange and/or exhaust in work rooms.
Open drum carefully as content may be under pressure.
Dispose of rinse water in accordance with local and national
regulations.
Persons susceptible to skin sensitisation problems or asthma,
allergies, chronic or recurrent respiratory disease should not
be employed in any process in which this mixture is being
used.
Advice on protection against
fire and explosion
: Do not spray on a naked flame or any incandescent material.
Take necessary action to avoid static electricity discharge
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
7 / 31
(which might cause ignition of organic vapours). Keep away
from open flames, hot surfaces and sources of ignition.
Hygiene measures : Wash hands before breaks and at the end of workday.
7.2 Conditions for safe storage, including any incompatibilities
Requirements for storage
areas and containers
: No smoking. Keep container tightly closed in a dry and wellventilated place. Containers which are opened must be carefully resealed and kept upright to prevent leakage. Observe
label precautions. Electrical installations / working materials
must comply with the technological safety standards.
Further information on storage stability
: No decomposition if stored and applied as directed.
7.3 Specific end use(s)
Specific use(s) : For further information, refer to the product technical data
sheet.
Consult the technical guidelines for the use of this substance/mixture.
SECTION 8: Exposure controls/personal protection
8.1 Control parameters
Occupational Exposure Limits
Components CAS-No. Value type (Form
of exposure)
Control parameters Basis
barium sulphate,
natural
7727-43-7 TWA (inhalable
dust)
10 mg/m3 GB EH40
TWA (Respirable
dust)
4 mg/m3 GB EH40
n-butyl acetate 123-86-4 TWA 150 ppm
724 mg/m3
GB EH40
STEL 200 ppm
966 mg/m3
GB EH40
STEL 150 ppm
723 mg/m3
2019/1831/E
U
Further information: Indicative
TWA 50 ppm
241 mg/m3
2019/1831/E
U
Further information: Indicative
heptan-2-one 110-43-0 TWA 50 ppm
238 mg/m3
2000/39/EC
Further information: Identifies the possibility of significant uptake through the
skin, Indicative
STEL 100 ppm
475 mg/m3
2000/39/EC
Further information: Identifies the possibility of significant uptake through the
skin, Indicative
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
8 / 31
TWA 50 ppm
237 mg/m3
GB EH40
Further information: Can be absorbed through the skin. The assigned substances are those for which there are concerns that dermal absorption will
lead to systemic toxicity.
STEL 100 ppm
475 mg/m3
GB EH40
Further information: Can be absorbed through the skin. The assigned substances are those for which there are concerns that dermal absorption will
lead to systemic toxicity.
2-methoxy-1-
methylethyl acetate
108-65-6 STEL 100 ppm
550 mg/m3
2000/39/EC
Further information: Identifies the possibility of significant uptake through the
skin, Indicative
TWA 50 ppm
275 mg/m3
2000/39/EC
Further information: Identifies the possibility of significant uptake through the
skin, Indicative
TWA 50 ppm
274 mg/m3
GB EH40
Further information: Can be absorbed through the skin. The assigned substances are those for which there are concerns that dermal absorption will
lead to systemic toxicity.
STEL 100 ppm
548 mg/m3
GB EH40
Further information: Can be absorbed through the skin. The assigned substances are those for which there are concerns that dermal absorption will
lead to systemic toxicity.
Talc 14807-96-6 TWA (Respirable
dust)
1 mg/m3 GB EH40
TWA (Respirable
dust)
0,1 mg/m3 2004/37/EC
Further information: Carcinogens or mutagens
carbon black 1333-86-4 TWA 3,5 mg/m3 GB EH40
STEL 7 mg/m3 GB EH40
Phthalic anhydride 85-44-9 TWA 4 mg/m3 GB EH40
Further information: Capable of causing occupational asthma.
STEL 12 mg/m3 GB EH40
Further information: Capable of causing occupational asthma.
maleic anhydride 108-31-6 TWA 1 mg/m3 GB EH40
Further information: Capable of causing occupational asthma.
STEL 3 mg/m3 GB EH40
Further information: Capable of causing occupational asthma.
Derived No Effect Level (DNEL) according to Regulation (EC) No. 1907/2006:
Substance name End Use Exposure routes Potential health effects
Value
barium sulphate, natural
Consumers Inhalation Long-term systemic
effects
10 mg/m3
Workers Inhalation Long-term systemic 10 mg/m3
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
9 / 31
effects
Consumers Oral Long-term systemic
effects
13000 mg/kg
bw/day
n-butyl acetate Workers Inhalation Acute systemic effects
600 mg/m3
Workers Inhalation Acute local effects 600 mg/m3
Workers Inhalation Long-term systemic
effects
48 mg/m3
Workers Inhalation Long-term local effects
300 mg/m3
Consumers Inhalation Acute systemic effects
300 mg/m3
Consumers Inhalation Acute local effects 300 mg/m3
Consumers Inhalation Long-term systemic
effects
12 mg/m3
Consumers Inhalation Long-term local effects
35,7 mg/m3
Consumers Dermal Long-term systemic
effects
3,4 mg/kg
bw/day
Consumers Dermal Acute systemic effects
6 mg/kg
bw/day
Consumers Oral Long-term systemic
effects
2 mg/kg
bw/day
Consumers Oral Acute systemic effects
2 mg/kg
bw/day
Workers Dermal Long-term systemic
effects
7 mg/kg
bw/day
Workers Dermal Acute systemic effects
11 mg/kg
bw/day
heptan-2-one Workers Inhalation Long-term systemic
effects
394,25 mg/m3
Consumers Inhalation Long-term systemic
effects
84,31 mg/m3
Workers Inhalation Acute systemic effects
1516 mg/m3
Workers Dermal Long-term systemic
effects
54,27 mg/kg
bw/day
Consumers Dermal Long-term systemic
effects
23,32 mg/kg
bw/day
Consumers Oral Long-term systemic
effects
23,32 mg/kg
bw/day
Hydrocarbons, C9
aromatics
Workers Inhalation Long-term systemic
effects
150 mg/m3
Workers Oral Long-term systemic
effects
150 mg/m3
Consumers Inhalation Long-term exposure 32 mg/m3
Workers Dermal Long-term systemic
effects
25 mg/kg
bw/day
Consumers Dermal Long-term systemic
effects
11 mg/kg
bw/day
trizinc
bis(orthophosphate)
Workers Inhalation Long-term systemic
effects
5 mg/m3
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
10 / 31
Consumers Inhalation Long-term systemic
effects
2,5 mg/m3
Workers Dermal Long-term systemic
effects
83 mg/kg
bw/day
Consumers Dermal Long-term systemic
effects
83 mg/kg
bw/day
Consumers Oral Long-term systemic
effects
0,83 mg/kg
bw/day
hexane-1,6-diol Workers Inhalation Long-term systemic
effects
35 mg/m3
Consumers Inhalation Long-term systemic
effects
8,7 mg/m3
Consumers Dermal Long-term systemic
effects
5 mg/kg
bw/day
Consumers Oral Long-term systemic
effects
5 mg/kg
bw/day
Workers Dermal Long-term systemic
effects
10 mg/kg
bw/day
Consumers Oral Acute systemic effects
21 mg/kg
bw/day
isophthalic acid Workers Inhalation Long-term systemic
effects
8,8 mg/m3
Consumers Inhalation Long-term systemic
effects
2,2 mg/m3
Workers Dermal Long-term systemic
effects
25 mg/kg
bw/day
Consumers Dermal Long-term systemic
effects
12,5 mg/kg
bw/day
Consumers Oral Long-term systemic
effects
1,3 mg/kg
bw/day
2-methoxy-1-
methylethyl acetate
Workers Inhalation Long-term systemic
effects
275 mg/m3
Workers Inhalation Acute local effects 550 mg/m3
Consumers Inhalation Long-term systemic
effects
33 mg/m3
Consumers Inhalation Long-term local effects
33 mg/m3
Workers Dermal Long-term systemic
effects
796 mg/kg
bw/day
Consumers Dermal Long-term systemic
effects
320 mg/kg
bw/day
Consumers Oral Long-term systemic
effects
36 mg/kg
bw/day
Talc Workers Inhalation Acute systemic effects
2,16 mg/m3
Workers Inhalation Acute local effects 3,6 mg/m3
Consumers Inhalation Acute systemic effects
1,08 mg/m3
Consumers Inhalation Acute local effects 1,8 mg/m3
Consumers Dermal Long-term local effects
2,27 mg/cm2
Workers Dermal Long-term local ef- 4,54 mg/cm2
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
11 / 31
fects
Consumers Oral Long-term systemic
effects
160 mg/kg
bw/day
Consumers Oral Acute systemic effects
160 mg/kg
bw/day
Workers Dermal Long-term systemic
effects
43,2 mg/kg
bw/day
Consumers Dermal Long-term systemic
effects
21,6 mg/kg
bw/day
carbon black Workers Inhalation Long-term systemic
effects
1 mg/m3
Consumers Inhalation Long-term local effects
1,75 mg/m3
Workers Inhalation Long-term local effects
2 mg/m3
Consumers Inhalation Long-term systemic
effects
0,06 mg/m3
adipic acid Workers Inhalation Acute systemic effects
264 mg/m3
Workers Inhalation Long-term systemic
effects
264 mg/m3
Workers Inhalation Acute local effects 5 mg/m3
Workers Inhalation Acute local effects 5 mg/m3
Consumers Inhalation Acute systemic effects
65 mg/m3
Consumers Inhalation Long-term systemic
effects
65 mg/m3
Workers Dermal Long-term systemic
effects
38 mg/kg
bw/day
Workers Dermal Acute systemic effects
38 mg/kg
bw/day
Consumers Dermal Long-term systemic
effects
19 mg/kg
bw/day
Consumers Dermal Acute systemic effects
19 mg/kg
bw/day
Consumers Oral Long-term systemic
effects
19 mg/kg
bw/day
Consumers Oral Acute systemic effects
19 mg/kg
bw/day
propylidynetrimethanol
Workers Inhalation Long-term systemic
effects
3,3 mg/m3
Consumers Inhalation Long-term systemic
effects
0,58 mg/m3
Consumers Oral Long-term systemic
effects
0,34 mg/kg
bw/day
Workers Dermal Long-term systemic
effects
0,94 mg/kg
bw/day
Consumers Dermal Long-term systemic
effects
0,34 mg/kg
bw/day
Predicted No Effect Concentration (PNEC) according to Regulation (EC) No. 1907/2006:
Substance name Environmental Compartment Value
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
12 / 31
barium sulphate, natural Soil 207,7 mg/kg dry
weight (d.w.)
Fresh water 0,115 mg/l
Fresh water sediment 600,4 mg/kg dry
weight (d.w.)
Sewage treatment plant 62,2 mg/l
n-butyl acetate Soil 0,0903 mg/kg dry
weight (d.w.)
Marine water 0,018 mg/l
Fresh water 0,18 mg/l
Marine sediment 0,0981 mg/kg dry
weight (d.w.)
Fresh water sediment 0,981 mg/kg dry
weight (d.w.)
Sewage treatment plant 35,6 mg/l
Intermittent use/release 0,36 mg/l
heptan-2-one Soil 0,321 mg/kg dry
weight (d.w.)
Marine water 0,00982 mg/l
Fresh water 0,0982 mg/l
Marine sediment 0,189 mg/kg dry
weight (d.w.)
Fresh water sediment 1,89 mg/kg dry
weight (d.w.)
Sewage treatment plant 12,5 mg/l
Intermittent use/release 0,982 mg/l
trizinc bis(orthophosphate) Soil 35,6 mg/kg dry
weight (d.w.)
Marine water 0,0061 mg/l
Fresh water 0,0206 mg/l
Marine sediment 56,5 mg/kg dry
weight (d.w.)
Fresh water sediment 117,8 mg/kg dry
weight (d.w.)
Sewage treatment plant 0,1 mg/l
hexane-1,6-diol Soil 0,0764 mg/kg dry
weight (d.w.)
Marine water 0,05 mg/l
Fresh water 0,5 mg/l
Marine sediment 0,105 mg/kg dry
weight (d.w.)
Fresh water sediment 1,05 mg/kg dry
weight (d.w.)
Sewage treatment plant 8,4 mg/l
Intermittent use/release 5 mg/l
isophthalic acid Soil 1,69 mg/kg dry
weight (d.w.)
Marine water 0,0907 mg/l
Fresh water 0,907 mg/l
Marine sediment 0,1246 mg/l
Fresh water sediment 1,246 mg/kg dry
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
13 / 31
weight (d.w.)
Sewage treatment plant 16 mg/l
Intermittent use/release 9,07 mg/l
2-methoxy-1-methylethyl acetate Soil 0,29 mg/kg dry
weight (d.w.)
Marine water 0,0635 mg/l
Fresh water 0,635 mg/l
Marine sediment 0,329 mg/kg dry
weight (d.w.)
Fresh water sediment 3,29 mg/kg dry
weight (d.w.)
Sewage treatment plant 100 mg/l
Intermittent use/release 0,00635 mg/l
Talc Marine water 141,26 mg/l
Fresh water 597,97 mg/l
Marine sediment 3,13 mg/kg dry
weight (d.w.)
Fresh water sediment 31,33 mg/kg dry
weight (d.w.)
Intermittent use/release 597,97 mg/l
carbon black Marine water 5 mg/l
Fresh water 5 - 50 mg/l
adipic acid Soil 0,0228 mg/kg dry
weight (d.w.)
Marine water 0,0126 mg/l
Fresh water 0,126 mg/l
Marine sediment 0,0484 mg/kg dry
weight (d.w.)
Sewage treatment plant 59,1 mg/l
Phthalic anhydride Soil 0,173 mg/kg dry
weight (d.w.)
Marine water 100 mg/l
Fresh water 1 mg/l
Marine sediment 0,38 mg/kg dry
weight (d.w.)
Fresh water sediment 3,8 mg/kg dry
weight (d.w.)
Sewage treatment plant 10 mg/l
Intermittent use/release 5,6 mg/l
8.2 Exposure controls
Personal protective equipment
Eye protection : Equipment should conform to EN 166
Eye wash bottle with pure water
Tightly fitting safety goggles
Hand protection
Gloves : │ Nitrile rubber (> 0,1 mm; < 60 min); DIN EN374 ││ butylrubber (> 0,6 mm; < 240 min); DIN EN374 ││ Viton® (> 0,6
mm; < 240 min); DIN EN374 ││ PE laminate (> 0,1 mm; <
240 min); DIN EN374 │
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
14 / 31
Remarks : Please observe the instructions regarding permeability and
breakthrough time which are provided by the supplier of the
gloves. Also take into consideration the specific local conditions under which the product is used, such as the danger of
cuts, abrasion, and the contact time.
Skin and body protection : Impervious clothing
Choose body protection according to the amount and concentration of the dangerous substance at the work place.
Respiratory protection : Use respiratory protection unless adequate local exhaust
ventilation is provided or exposure assessment demonstrates
that exposures are within recommended exposure guidelines.
Equipment should conform to EN 14387
Filter type : Organic vapour type (A)
Use respiratory protection unless adequate local exhaust
ventilation is provided or exposure assessment demonstrates
that exposures are within recommended exposure guidelines.
In the case of dust or aerosol formation use respirator with an
approved filter.
Respirator with a half face mask
Equipment should conform to EN-136; EN-143; EN-149; EN529
Combined particulates and organic vapour type (A - P2)
SECTION 9: Physical and chemical properties
9.1 Information on basic physical and chemical properties
Physical state : viscous liquid
Colour : black
Odour : solvent-like
Odour Threshold : No data available
Melting point/freezing point : -78,0 °C
(calculation method (principal components, lowest value))
Boiling point/boiling range : 126 °C (calculation method (principal components, lowest
value))
Upper explosion limit / Upper
flammability limit
: 7,5 %(V) (calculation method (principal components, highest
value))
Lower explosion limit / Lower
flammability limit
: 1,2 %(V) (calculation method (principal components, highest
value))
Flash point : 29 °C (calculation method (principal components, lowest value))
Ignition temperature : 393 °C (calculation method (principal components, highest
value))
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
15 / 31
Decomposition temperature
Decomposition temperature : No decomposition if stored and applied as directed.
pH : substance/mixture is non-polar/aprotic (not an aqueous solution)
Viscosity
Viscosity, kinematic : > 21 mm2/s (40 °C)
Flow time : 30 - 40 s at 23 °C
Method: DIN6
Solubility(ies)
Water solubility : negligible
Solubility in other solvents : Description: miscible with most organic solvents
Partition coefficient: noctanol/water
: log Pow: 1,98 (calculation method (principal components,
highest value))
Vapour pressure : < 1.100 hPa (calculation method (principal components, highest value))
(50 °C)
Density : 1,36 g/cm3 (20 °C)
Relative vapour density : 4 (calculation method (principal components, lowest value))
9.2 Other information
Explosives : Not explosive
In use, may form flammable/explosive vapour-air mixture.
Oxidizing properties : Sustains combustion
Flammability (liquids) : Static-accumulating flammable liquid.
Self-ignition : not auto-flammable
Evaporation rate : not determined
VOC : (Directive 2010/75/EU of 24 November 2010 on industrial
emissions (integrated pollution prevention and control))
26,47 %
Volatile CMR compounds [%]: 0 %
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
16 / 31
SECTION 10: Stability and reactivity
10.1 Reactivity
No decomposition if stored and applied as directed.
10.2 Chemical stability
No decomposition if stored and applied as directed.
10.3 Possibility of hazardous reactions
Hazardous reactions : No decomposition if stored and applied as directed.
Vapours may form explosive mixture with air.
10.4 Conditions to avoid
Conditions to avoid : Heat, flames and sparks.
10.5 Incompatible materials
Materials to avoid : Incompatible with strong acids and bases.
10.6 Hazardous decomposition products
Adequate ventilation is required.
Heating can release vapours which can be ignited.
Carbon monoxide, carbon dioxide and unburned hydrocarbons (smoke).
SECTION 11: Toxicological information
11.1 Information on hazard classes as defined in Regulation (EC) No 1272/2008
Acute toxicity
Not classified based on available information.
Product:
Acute oral toxicity : Acute toxicity estimate: > 2.000 mg/kg
Method: Calculation method
Acute inhalation toxicity : Acute toxicity estimate: > 20 mg/l
Exposure time: 4 h
Test atmosphere: vapour
Method: Calculation method
Components:
n-butyl acetate:
Acute oral toxicity : LD50 Oral (Rat): >= 10.760 mg/kg
Acute dermal toxicity : LD50 (Rabbit): >= 5.000 mg/kg
heptan-2-one:
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
17 / 31
Acute oral toxicity : Assessment: The component/mixture is moderately toxic after
single ingestion.
Acute inhalation toxicity : Test atmosphere: vapour
Assessment: The component/mixture is moderately toxic after
short term inhalation.
Hydrocarbons, C9 aromatics:
Acute dermal toxicity : LD50 (Rabbit): > 3.160 mg/kg
trizinc bis(orthophosphate):
Acute oral toxicity : LD50 (Rat): 5.000 mg/kg
2-methoxy-1-methylethyl acetate:
Acute oral toxicity : LD50 Oral (Rat): > > 2.000 mg/kg
Acute inhalation toxicity : LC50 (Rat): > 5 mg/l
Test atmosphere: vapour
LC0 (Rat): 2000 ppm
Exposure time: 3 h
Acute dermal toxicity : LD50 (Rabbit): > > 2.000 mg/kg
Phthalic anhydride:
Acute oral toxicity : Assessment: The component/mixture is moderately toxic after
single ingestion.
pentaerythritol tetrakis(3-mercaptopropionate):
Acute oral toxicity : Assessment: The component/mixture is moderately toxic after
single ingestion.
maleic anhydride:
Acute oral toxicity : Assessment: The component/mixture is moderately toxic after
single ingestion.
Skin corrosion/irritation
Not classified based on available information.
Product:
Remarks : May cause skin irritation and/or dermatitis.
Components:
Phthalic anhydride:
Result : irritating
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
18 / 31
maleic anhydride:
Result : Corrosive after 3 minutes to 1 hour of exposure
Serious eye damage/eye irritation
Not classified based on available information.
Product:
Remarks : Vapours may cause irritation to the eyes, respiratory system
and the skin.
Components:
adipic acid:
Result : Eye irritation
Phthalic anhydride:
Result : Corrosive
Respiratory or skin sensitisation
Skin sensitisation
May cause an allergic skin reaction.
Respiratory sensitisation
Not classified based on available information.
Product:
Remarks : Causes sensitisation.
Components:
Phthalic anhydride:
Result : Probability of respiratory sensitisation in humans based on
animal testing
Result : Probability or evidence of skin sensitisation in humans
mixture of sterically composed sebacates:
Result : May cause sensitisation by skin contact.
pentaerythritol tetrakis(3-mercaptopropionate):
Result : Probability or evidence of high skin sensitisation rate in humans
maleic anhydride:
Result : Probability of respiratory sensitisation in humans based on
animal testing
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
19 / 31
Result : Probability or evidence of skin sensitisation in humans
Germ cell mutagenicity
Not classified based on available information.
Carcinogenicity
Not classified based on available information.
Reproductive toxicity
Not classified based on available information.
Components:
propylidynetrimethanol:
Reproductive toxicity - Assessment
: Some evidence of adverse effects on sexual function and
fertility, based on animal experiments., Some evidence of
adverse effects on development, based on animal experiments.
STOT - single exposure
May cause drowsiness or dizziness.
Components:
n-butyl acetate:
Assessment : May cause drowsiness or dizziness.
heptan-2-one:
Assessment : May cause drowsiness or dizziness.
Hydrocarbons, C9 aromatics:
Assessment : May cause drowsiness or dizziness.
Assessment : May cause respiratory irritation.
2-methoxy-1-methylethyl acetate:
Assessment : May cause drowsiness or dizziness.
Phthalic anhydride:
Assessment : May cause respiratory irritation.
STOT - repeated exposure
Not classified based on available information.
Components:
maleic anhydride:
Assessment : May cause damage to organs through prolonged or repeated
exposure.
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
20 / 31
Aspiration toxicity
Not classified based on available information.
Components:
Hydrocarbons, C9 aromatics:
May be fatal if swallowed and enters airways.
11.2 Information on other hazards
Endocrine disrupting properties
Product:
Assessment : The substance/mixture does not contain components considered to have endocrine disrupting properties according to
REACH Article 57(f) or Commission Delegated regulation
(EU) 2017/2100 or Commission Regulation (EU) 2018/605 at
levels of 0.1% or higher.
Further information
Product:
Remarks : Symptoms of overexposure may be headache, dizziness,
tiredness, nausea and vomiting.
Concentrations substantially above the TLV value may cause
narcotic effects.
Solvents may degrease the skin.
SECTION 12: Ecological information
12.1 Toxicity
Components:
n-butyl acetate:
Toxicity to algae/aquatic
plants
: NOEC (Desmodesmus subspicatus (green algae)): > 200 mg/l
EC50 (Desmodesmus subspicatus (green algae)): >= 647,7
mg/l
Exposure time: 72 h
Toxicity to microorganisms : IC50 (Tetrahymena pyriformis): 356 mg/l
Exposure time: 40 h
Hydrocarbons, C9 aromatics:
Toxicity to fish : LC50 (Fish): >= 9,2 mg/l
Exposure time: 96 h
Toxicity to daphnia and other : EC50 (Daphnia (water flea)): >= 3,2 mg/l
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
21 / 31
aquatic invertebrates Exposure time: 48 h
Ecotoxicology Assessment
Chronic aquatic toxicity : Toxic to aquatic life with long lasting effects.
trizinc bis(orthophosphate):
Ecotoxicology Assessment
Acute aquatic toxicity : Very toxic to aquatic life.
Chronic aquatic toxicity : Very toxic to aquatic life with long lasting effects.
2-methoxy-1-methylethyl acetate:
Toxicity to fish : LC50 (Oncorhynchus mykiss (rainbow trout)): 130 mg/l
Exposure time: 96 h
NOEC : 100 mg/l
Exposure time: 96 h
Toxicity to daphnia and other
aquatic invertebrates
: LC50 : 408 mg/l
Exposure time: 48 h
Toxicity to fish (Chronic toxicity)
: EC10: 47,5 mg/l
propylidynetrimethanol:
Toxicity to fish : LC50 (Fish): 1.000 mg/l
Exposure time: 96 h
Toxicity to daphnia and other
aquatic invertebrates
: EC50 : 13 mg/l
Toxicity to microorganisms : NOEC : 1 mg/l
Phthalic anhydride:
Toxicity to fish : LC50 (Oncorhynchus mykiss (rainbow trout)): 4,4 - 48,3 mg/l
Exposure time: 60 h
Toxicity to daphnia and other
aquatic invertebrates
: EC50 : 640 mg/l
Exposure time: 48 h
EC0 : 640 mg/l
Exposure time: 48 h
Toxicity to algae/aquatic
plants
: EC50 (Selenastrum capricornutum (green algae)): 60 - 350
mg/l
Exposure time: 96 h
Toxicity to microorganisms : NOEC (Anabaena flos-aquae (cyanobacterium)): 100 mg/l
Exposure time: 72 h
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
22 / 31
EC50 (Natural microorganism): 213 mg/l
Exposure time: 16 h
Toxicity to fish (Chronic toxicity)
: NOEC: 10 mg/l
Exposure time: 60 d
LOEC: 32 mg/l
Exposure time: 60 d
Toxicity to daphnia and other
aquatic invertebrates (Chronic toxicity)
: NOEC: 16 mg/l
Exposure time: 21 d
mixture of sterically composed sebacates:
Ecotoxicology Assessment
Acute aquatic toxicity : Very toxic to aquatic life.
Chronic aquatic toxicity : Very toxic to aquatic life with long lasting effects.
pentaerythritol tetrakis(3-mercaptopropionate):
Ecotoxicology Assessment
Acute aquatic toxicity : Very toxic to aquatic life.
Chronic aquatic toxicity : Very toxic to aquatic life with long lasting effects.
maleic anhydride:
Toxicity to fish : LC50 : 75 mg/l
Exposure time: 96 h
Toxicity to daphnia and other
aquatic invertebrates (Chronic toxicity)
: NOEC: 10 mg/l
Exposure time: 21 d
Species: Daphnia magna (Water flea)
12.2 Persistence and degradability
Components:
n-butyl acetate:
Biodegradability : Result: Biodegradable
Biodegradation: 83 %
Exposure time: 28 d
Method: OECD Test Guideline 301D
Stability in water : Degradation half life: 78 d
pH: 8
Hydrolyses slowly.
Photodegradation : Decomposes rapidly in contact with light.
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
23 / 31
2-methoxy-1-methylethyl acetate:
Biodegradability : Readily biodegradable.
propylidynetrimethanol:
Biodegradability : Inherently biodegradable.
Stability in water : Hydrolyses slowly on contact with water.
Phthalic anhydride:
Biodegradability : According to the results of tests of biodegradability this product is considered as being readily biodegradable.
Physico-chemical removability
: Not readily eliminated from water.
Photodegradation :
maleic anhydride:
Biodegradability : Result: Biodegradable
Biodegradation: 90 %
Exposure time: 25 d
Method: OECD Test Guideline 301B
Stability in water : Hydrolyses readily.
Photodegradation :
12.3 Bioaccumulative potential
Components:
n-butyl acetate:
Bioaccumulation : Bioconcentration factor (BCF): 15
Bioaccumulation is unlikely.
Partition coefficient: noctanol/water
: log Pow: 1,81
heptan-2-one:
Partition coefficient: noctanol/water
: log Pow: 1,98
Hydrocarbons, C9 aromatics:
Partition coefficient: noctanol/water
: log Pow: < 4
2-methoxy-1-methylethyl acetate:
Partition coefficient: noctanol/water
: log Pow: 1,2 (20 °C)
pH: 6,8
adipic acid:
Partition coefficient: noctanol/water
: log Pow: 0,081
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
24 / 31
propylidynetrimethanol:
Bioaccumulation : Inherently biodegradable.
Partition coefficient: noctanol/water
: log Pow: -2,37
Phthalic anhydride:
Partition coefficient: noctanol/water
: log Pow: 0,73
mixture of sterically composed sebacates:
Partition coefficient: noctanol/water
: log Pow: 2,37 - 2,77
pH: 7
maleic anhydride:
Bioaccumulation : Bioaccumulation is unlikely.
Partition coefficient: noctanol/water
: log Pow: -2,61 (20 °C)
12.4 Mobility in soil
Components:
Hydrocarbons, C9 aromatics:
Mobility : Medium: Air
Content: 92,9 %
: Medium: Water
Content: 3,5 %
: Medium: Soil
Content: 1,9 %
: Medium: Sediment
Content: 1,8 %
Distribution among environmental compartments
: Koc: 1,71 - 14,70
Mobile in soils
The product is insoluble and floats on water.
propylidynetrimethanol:
Distribution among environmental compartments
: Koc: 1,5
Stability in soil : Will not adsorb on soil.
maleic anhydride:
Mobility : Medium: Water
Content: 100 %
: Medium: Soil
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
25 / 31
Content: 0 %
Distribution among environmental compartments
: Koc: 42, log Koc: 1,63
12.5 Results of PBT and vPvB assessment
Product:
Assessment : This substance/mixture contains no components considered
to be either persistent, bioaccumulative and toxic (PBT), or
very persistent and very bioaccumulative (vPvB) at levels of
0.1% or higher..
Components:
Phthalic anhydride:
Assessment : This substance is not considered to be very persistent and
very bioaccumulating (vPvB).. This substance is not considered to be persistent, bioaccumulating and toxic (PBT)..
12.6 Endocrine disrupting properties
Product:
Assessment : The substance/mixture does not contain components considered to have endocrine disrupting properties according to
REACH Article 57(f) or Commission Delegated regulation
(EU) 2017/2100 or Commission Regulation (EU) 2018/605 at
levels of 0.1% or higher.
12.7 Other adverse effects
Product:
Additional ecological information
: An environmental hazard cannot be excluded in the event of
unprofessional handling or disposal.
Toxic to aquatic life with long lasting effects.
SECTION 13: Disposal considerations
13.1 Waste treatment methods
Product : The product should not be allowed to enter drains, water
courses or the soil.
Do not contaminate ponds, waterways or ditches with chemical or used container.
Send to a licensed waste management company.
Contaminated packaging : Empty remaining contents.
Dispose of as unused product.
Do not re-use empty containers.
Do not burn, or use a cutting torch on, the empty drum.
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
26 / 31
Waste Code : 08 00 00, WASTES FROM THE MANUFACTURE,
FORMULATION, SUPPLY AND USE (MFSU) OF COATINGS
(PAINTS, VARNISHES AND VITREOUS ENAMELS),
ADHESIVES, SEALANTS AND PRINTING INKS
08 01 00, wastes from MFSU and removal of paint and varnish
08 01 11*, waste paint and varnish containing organic solvents or other hazardous substances
15 00 00, WASTE PACKAGING; ABSORBENTS, WIPING
CLOTHS, FILTER MATERIALS AND PROTECTIVE
CLOTHING NOT OTHERWISE SPECIFIED
15 01 00, packaging (including separately collected municipal
packaging waste)
15 01 10*, packaging containing residues of or contaminated
by hazardous substances
HP3, Flammable
HP13, Sensitising
HP14, Ecotoxic
SECTION 14: Transport information
14.1 UN number or ID number
ADN : UN 1263
ADR : UN 1263
RID : UN 1263
IMDG : UN 1263
IATA : UN 1263
14.2 UN proper shipping name
ADN : PAINT
ADR : PAINT
RID : PAINT
IMDG : PAINT
(trizinc bis(orthophosphate), mixture of sterically composed
sebacates)
IATA : Paint
14.3 Transport hazard class(es)
ADN : 3
ADR : 3
RID : 3
IMDG : 3
IATA : 3
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
27 / 31
14.4 Packing group
ADN
Packing group : III
Classification Code : F1
Hazard Identification Number : 30
Labels : 3
ADR
Packing group : III
Classification Code : F1
Hazard Identification Number : 30
Labels : 3
Tunnel restriction code : (D/E)
RID
Packing group : III
Classification Code : F1
Hazard Identification Number : 30
Labels : 3
IMDG
Packing group : III
Labels : 3
EmS Code : F-E, S-E
IATA (Cargo)
Packing instruction (cargo
aircraft)
: 366
Packing instruction (LQ) : Y344
Packing group : III
Labels : Flammable Liquids
IATA (Passenger)
Packing instruction (passenger aircraft)
: 355
Packing instruction (LQ) : Y344
Packing group : III
Labels : Flammable Liquids
14.5 Environmental hazards
ADN
Environmentally hazardous : yes
ADR
Environmentally hazardous : yes
RID
Environmentally hazardous : yes
IMDG
Marine pollutant : yes
14.6 Special precautions for user
The transport classification(s) provided herein are for informational purposes only, and solely
based upon the properties of the unpackaged material as it is described within this Safety Data
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
28 / 31
Sheet. Transportation classifications may vary by mode of transportation, package sizes, and variations in regional or country regulations.
14.7 Maritime transport in bulk according to IMO instruments
Not applicable for product as supplied.
SECTION 15: Regulatory information
15.1 Safety, health and environmental regulations/legislation specific for the substance or mixture
REACH - Restrictions on the manufacture, placing on
the market and use of certain dangerous substances,
preparations and articles (Annex XVII)
: Conditions of restriction for the following entries should be considered:
Number on list 3
REACH - Candidate List of Substances of Very High
Concern for Authorisation (Article 59).
: Not applicable
Regulation (EC) No 649/2012 of the European Parliament and the Council concerning the export and import
of dangerous chemicals
: Not applicable
REACH - List of substances subject to authorisation
(Annex XIV)
: Not applicable
Regulation (EC) No 1005/2009 on substances that deplete the ozone layer
: Not applicable
Regulation (EU) 2019/1021 on persistent organic pollutants (recast)
: Not applicable
Seveso III: Directive 2012/18/EU of the European Parliament and of the Council on the
control of major-accident hazards involving
dangerous substances.
E2 ENVIRONMENTAL HAZARDS
P5c FLAMMABLE LIQUIDS
Volatile organic compounds : Directive 2010/75/EU of 24 November 2010 on industrial
emissions (integrated pollution prevention and control)
Volatile organic compounds (VOC) content: 26,47 %
Volatile CMR compounds: 0 %
Other regulations:
Take note of Directive 92/85/EEC regarding maternity protection or stricter national regulations,
where applicable.
Take note of Directive 94/33/EC on the protection of young people at work or stricter national
regulations, where applicable.
The components of this product are reported in the following inventories:
TCSI : Not in compliance with the inventory
TSCA : On or in compliance with the active portion of the TSCA inventory
AICS : Not in compliance with the inventory
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
29 / 31
DSL : This product contains the following components that are not
on the Canadian DSL nor NDSL.
Acrylic polymer, non classified
Saturated polyester, polymer
Chlorite-group minerals
dolomite
Pigments
Additives
3-mercaptopropionic acid
Hydrocarbons, C9 aromatics
Alkyd polymer
Magnezit
Mixture of diamide wax reaction mass
reaction mass of bis(1,2,2,6,6-pentamethyl-4-piperidyl) sebacate and methyl 1,2,2,6,6-pentamethyl-4-piperidyl sebacate
ENCS : Not in compliance with the inventory
ISHL : Not in compliance with the inventory
KECI : Not in compliance with the inventory
PICCS : Not in compliance with the inventory
IECSC : Not in compliance with the inventory
NZIoC : Not in compliance with the inventory
REACH : Not in compliance with the inventory
15.2 Chemical safety assessment
A Chemical Safety Assessment is not required for this substance.
SECTION 16: Other information
Full text of H-Statements
H226 : Flammable liquid and vapour.
H302 : Harmful if swallowed.
H304 : May be fatal if swallowed and enters airways.
H314 : Causes severe skin burns and eye damage.
H315 : Causes skin irritation.
H317 : May cause an allergic skin reaction.
H318 : Causes serious eye damage.
H319 : Causes serious eye irritation.
H332 : Harmful if inhaled.
H334 : May cause allergy or asthma symptoms or breathing difficulties if inhaled.
H335 : May cause respiratory irritation.
H336 : May cause drowsiness or dizziness.
H361fd : Suspected of damaging fertility. Suspected of damaging the
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
ZebraCoat Xtreme Satin
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
30 / 31
unborn child.
H372 : Causes damage to organs through prolonged or repeated
exposure.
H400 : Very toxic to aquatic life.
H410 : Very toxic to aquatic life with long lasting effects.
H411 : Toxic to aquatic life with long lasting effects.
EUH066 : Repeated exposure may cause skin dryness or cracking.
EUH071 : Corrosive to the respiratory tract.
Full text of other abbreviations
Acute Tox. : Acute toxicity
Aquatic Acute : Short-term (acute) aquatic hazard
Aquatic Chronic : Long-term (chronic) aquatic hazard
Asp. Tox. : Aspiration hazard
Eye Dam. : Serious eye damage
Eye Irrit. : Eye irritation
Flam. Liq. : Flammable liquids
Repr. : Reproductive toxicity
Resp. Sens. : Respiratory sensitisation
Skin Corr. : Skin corrosion
Skin Irrit. : Skin irritation
Skin Sens. : Skin sensitisation
STOT RE : Specific target organ toxicity - repeated exposure
STOT SE : Specific target organ toxicity - single exposure
2000/39/EC : Europe. Commission Directive 2000/39/EC establishing a first
list of indicative occupational exposure limit values
2004/37/EC : Europe. Directive 2004/37/EC on the protection of workers
from the risks related to exposure to carcinogens or mutagens
at work
2019/1831/EU : Europe. Commission Directive 2019/1831/EU establishing a
fifth list of indicative occupational exposure limit values
GB EH40 : UK. EH40 WEL - Workplace Exposure Limits
2000/39/EC / TWA : Limit Value - eight hours
2000/39/EC / STEL : Short term exposure limit
2004/37/EC / TWA : Long term exposure limit
2019/1831/EU / TWA : Limit Value - eight hours
2019/1831/EU / STEL : Short term exposure limit
GB EH40 / TWA : Long-term exposure limit (8-hour TWA reference period)
GB EH40 / STEL : Short-term exposure limit (15-minute reference period)
ADN - European Agreement concerning the International Carriage of Dangerous Goods by Inland
Waterways; ADR - European Agreement concerning the International Carriage of Dangerous
Goods by Road; AIIC - Australian Inventory of Industrial Chemicals; ASTM - American Society for
the Testing of Materials; bw - Body weight; CLP - Classification Labelling Packaging Regulation;
Regulation (EC) No 1272/2008; CMR - Carcinogen, Mutagen or Reproductive Toxicant; DIN -
Standard of the German Institute for Standardisation; DSL - Domestic Substances List (Canada);
ECHA - European Chemicals Agency; EC-Number - European Community number; ECx - Concentration associated with x% response; ELx - Loading rate associated with x% response; EmS -
Emergency Schedule; ENCS - Existing and New Chemical Substances (Japan); ErCx - Concentration associated with x% growth rate response; GHS - Globally Harmonized System; GLP -
Good Laboratory Practice; IARC - International Agency for Research on Cancer; IATA - International Air Transport Association; IBC - International Code for the Construction and Equipment of
Ships carrying Dangerous Chemicals in Bulk; IC50 - Half maximal inhibitory concentration; ICAO
SAFETY DATA SHEET
according to Regulation (EC) No. 1907/2006
HELIOPUR 41-04 90 RAL 9005
Version
1.0
Revision Date:
17.12.2021
SDS Number:
MAT000440828
GB / EN
Date of last issue: -
Date of first issue: 17.12.2021
31 / 31
- International Civil Aviation Organization; IECSC - Inventory of Existing Chemical Substances in
China; IMDG - International Maritime Dangerous Goods; IMO - International Maritime Organization; ISHL - Industrial Safety and Health Law (Japan); ISO - International Organisation for Standardization; KECI - Korea Existing Chemicals Inventory; LC50 - Lethal Concentration to 50 % of a
test population; LD50 - Lethal Dose to 50% of a test population (Median Lethal Dose); MARPOL -
International Convention for the Prevention of Pollution from Ships; n.o.s. - Not Otherwise Specified; NO(A)EC - No Observed (Adverse) Effect Concentration; NO(A)EL - No Observed (Adverse)
Effect Level; NOELR - No Observable Effect Loading Rate; NZIoC - New Zealand Inventory of
Chemicals; OECD - Organization for Economic Co-operation and Development; OPPTS - Office
of Chemical Safety and Pollution Prevention; PBT - Persistent, Bioaccumulative and Toxic substance; PICCS - Philippines Inventory of Chemicals and Chemical Substances; (Q)SAR - (Quantitative) Structure Activity Relationship; REACH - Regulation (EC) No 1907/2006 of the European
Parliament and of the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals; RID - Regulations concerning the International Carriage of Dangerous
Goods by Rail; SADT - Self-Accelerating Decomposition Temperature; SDS - Safety Data Sheet;
SVHC - Substance of Very High Concern; TCSI - Taiwan Chemical Substance Inventory; TRGS -
Technical Rule for Hazardous Substances; TSCA - Toxic Substances Control Act (United States);
UN - United Nations; vPvB - Very Persistent and Very Bioaccumulative
Further information
Classification of the mixture: Classification procedure:
Flam. Liq. 3 H226 Based on product data or assessment
Skin Sens. 1 H317 Calculation method
STOT SE 3 H336 Calculation method
Aquatic Chronic 2 H411 Calculation method
The information provided in this Safety Data Sheet is correct to the best of our knowledge, information and belief at the date of its publication. The information given is designed only as a guidance for safe handling, use, processing, storage, transportation, disposal and release and is not
to be considered a warranty or quality specification. The information relates only to the specific
material designated and may not be valid for such material used in combination with any other
materials or in any process, unless specified in the text.
